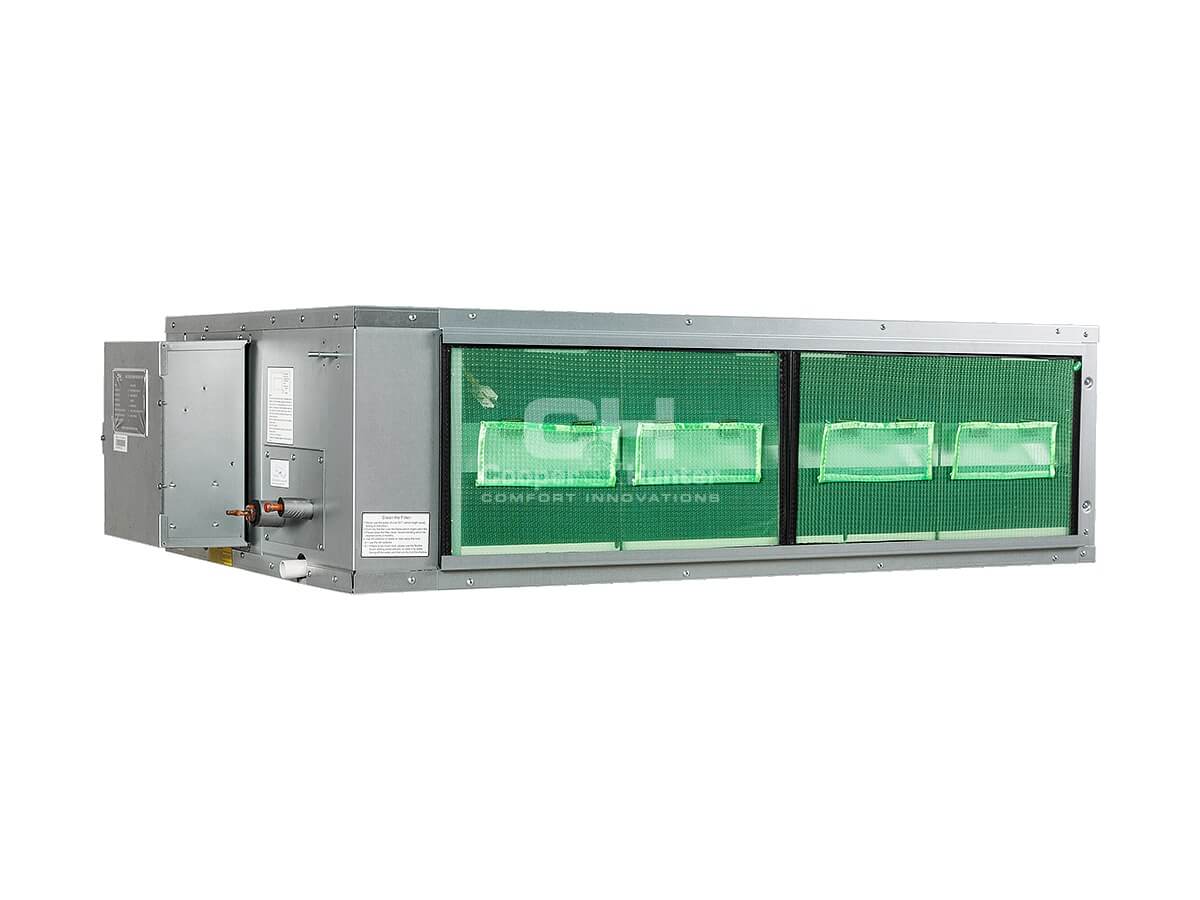

Technical Parameters Cooper&Hunter CH-IBD30NM:
| Cooling capacity, kW | 30.00 |
| Heating capacity, kW | 34.00 |
| Power supply | ~380-415V/50Hz/3 Ph |
| Energy consumption, kW | 11.1/10.8 |
| Air flow rate, m³/h | 5400 |
| Pressure (nominal/max), Pa | 125/250 |
| Refrigerant | R410A |
| Refrigerant amount, Kg | 9.50 |
| Weight (indoor / outdoor unit), Kg | 105/165 |
| Operating temperature range cooling, ºC | -7/+48 |
| Operating temperature range heating, ºC | -15/+24 |

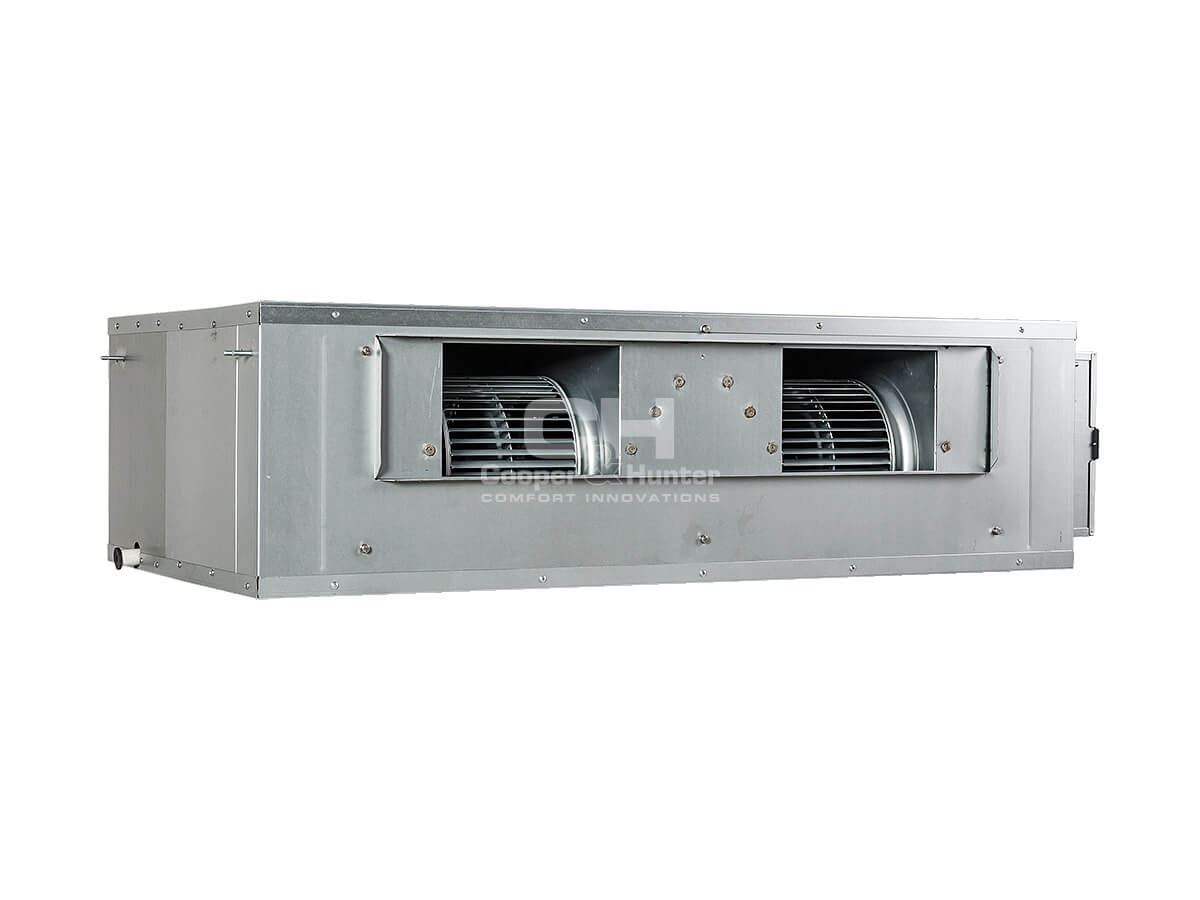

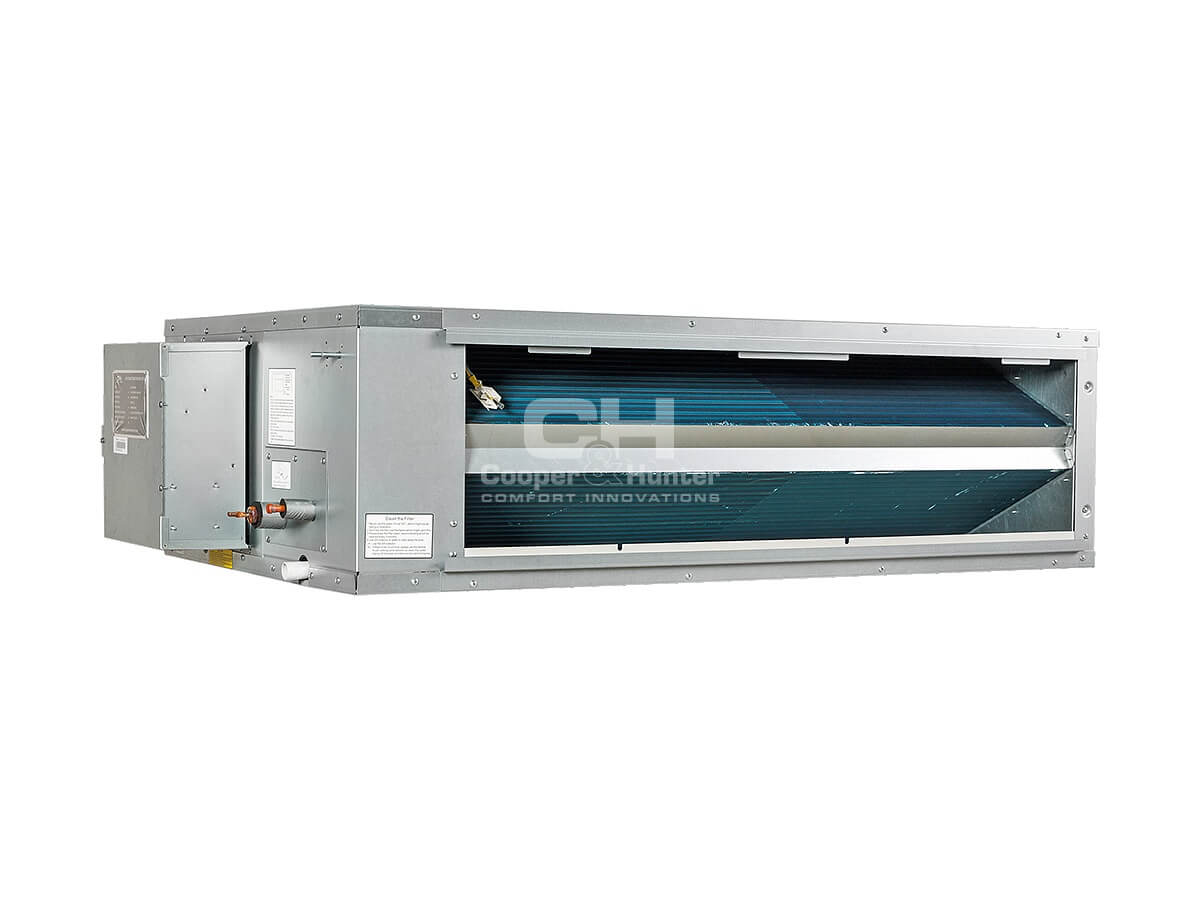

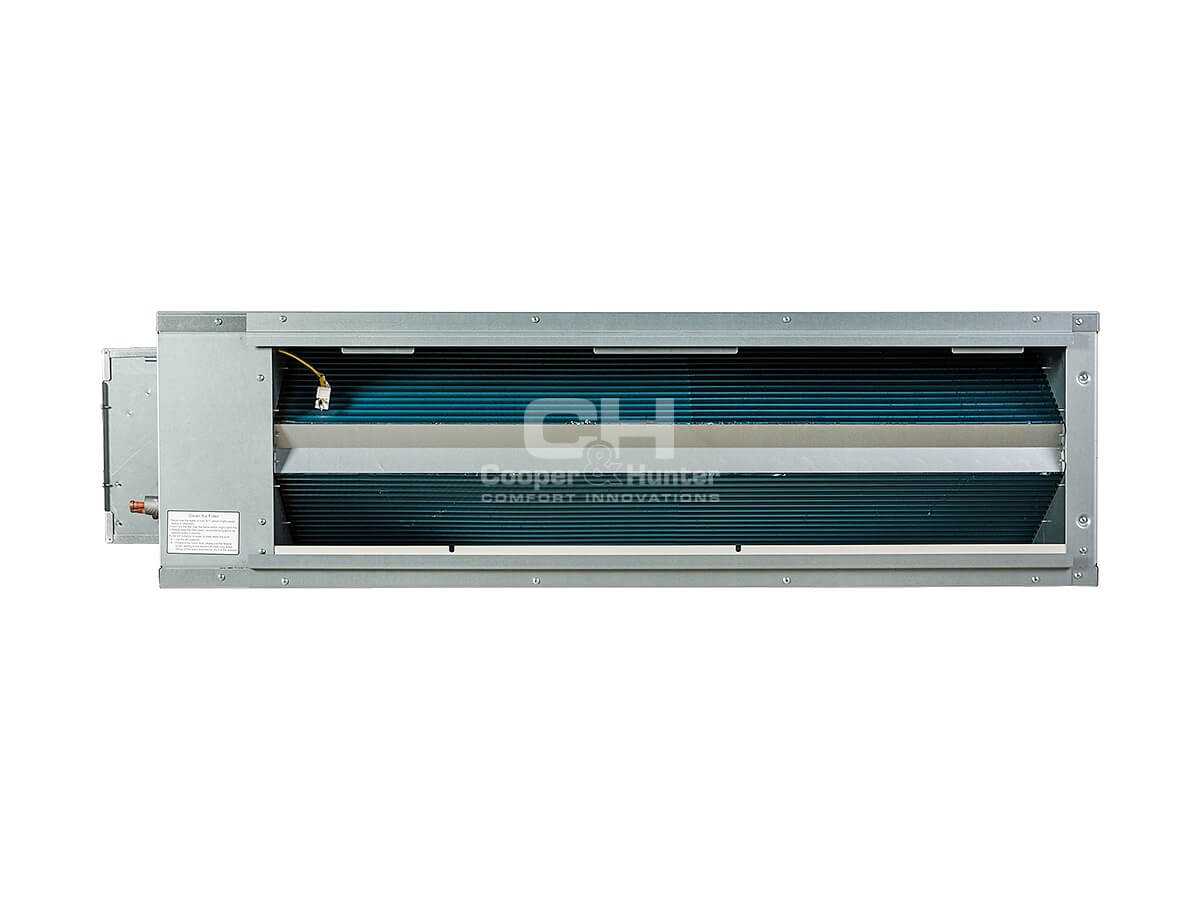

| Indoor unit dimensions, mm | 1541x705x420 |

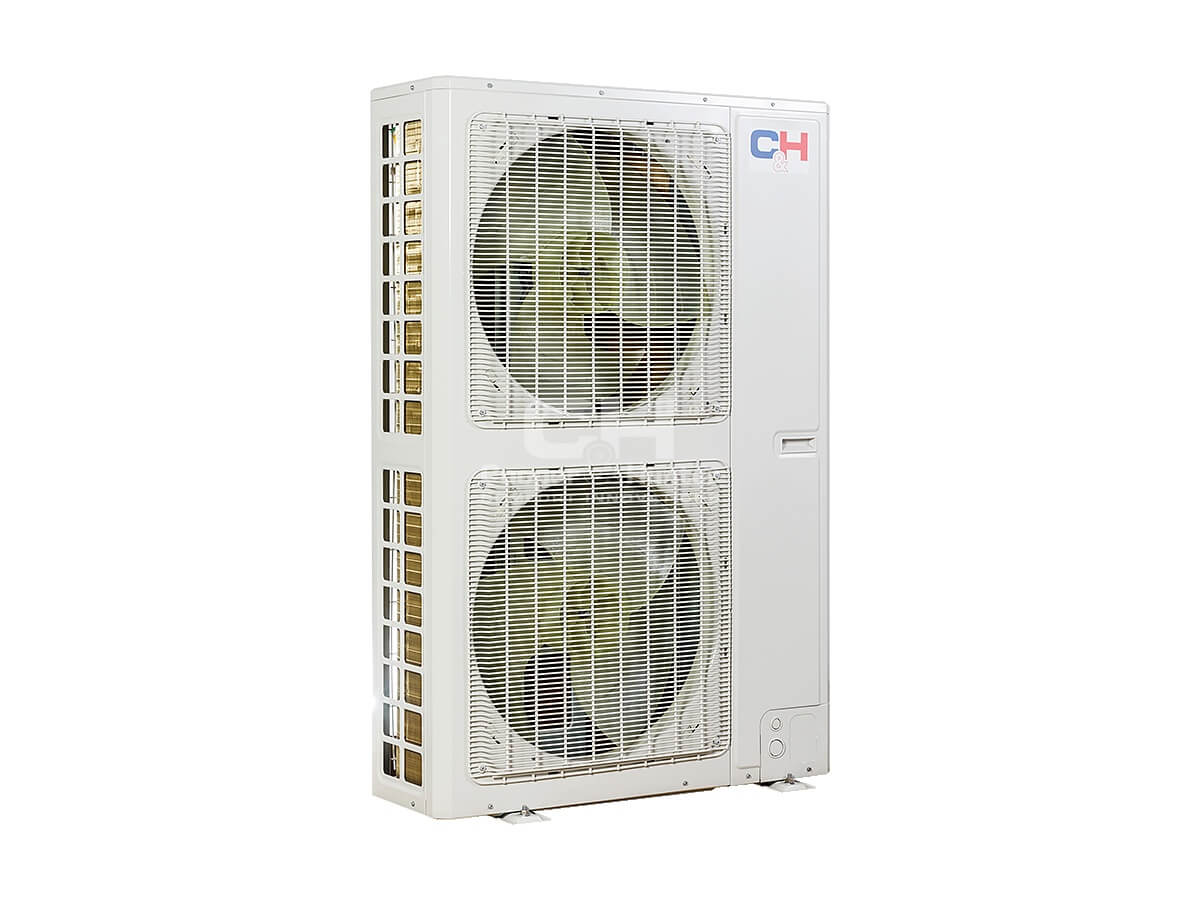

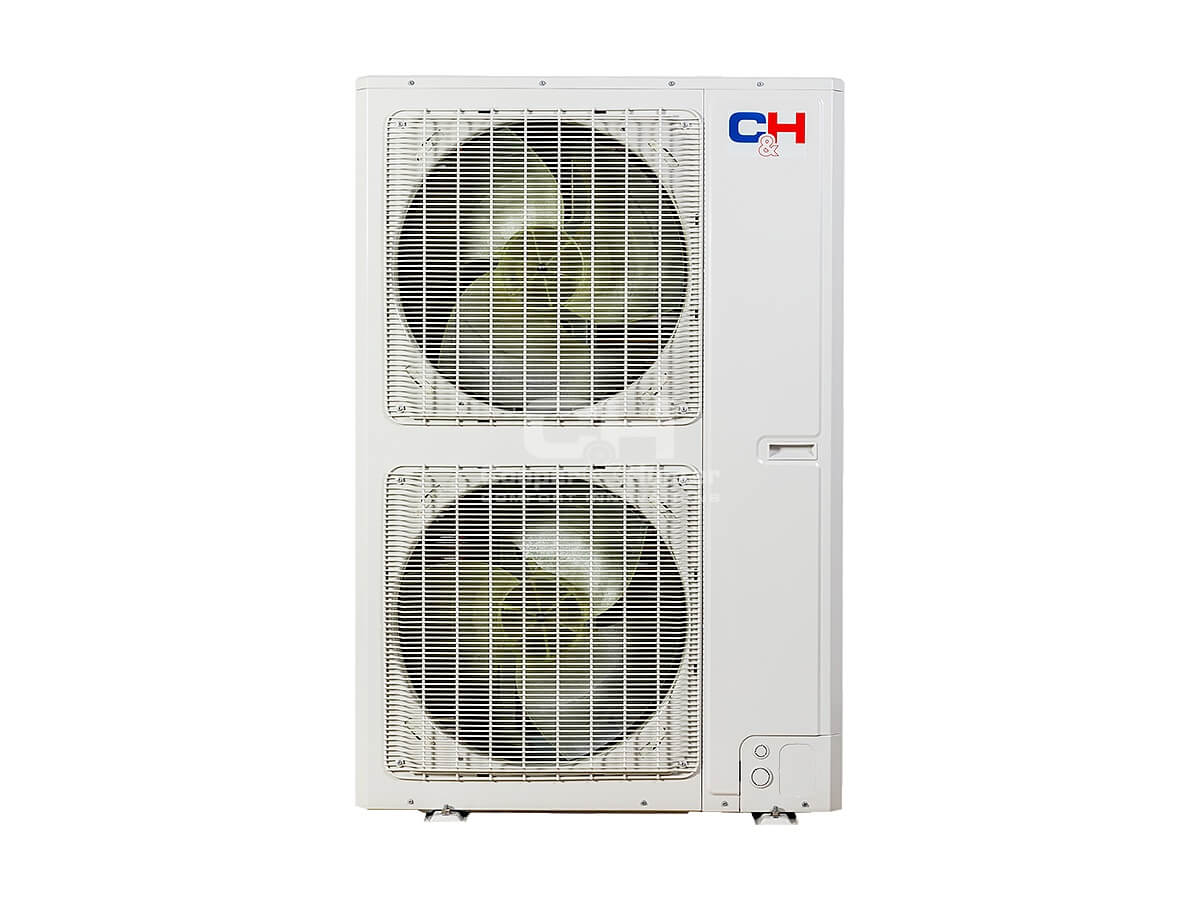

| Outdoor unit dimensions, mm | 940X460X1615 |
| ⌀ Diameter pipe – liquid (mm) | 12.1/1/2″ |
| ⌀ Diameter pipe – gas (mm) | 25.4/1″ |
| Maximum refrigerant pipe length, m | 70 |
| Maximum refrigerant pipe height, m | 40 |
