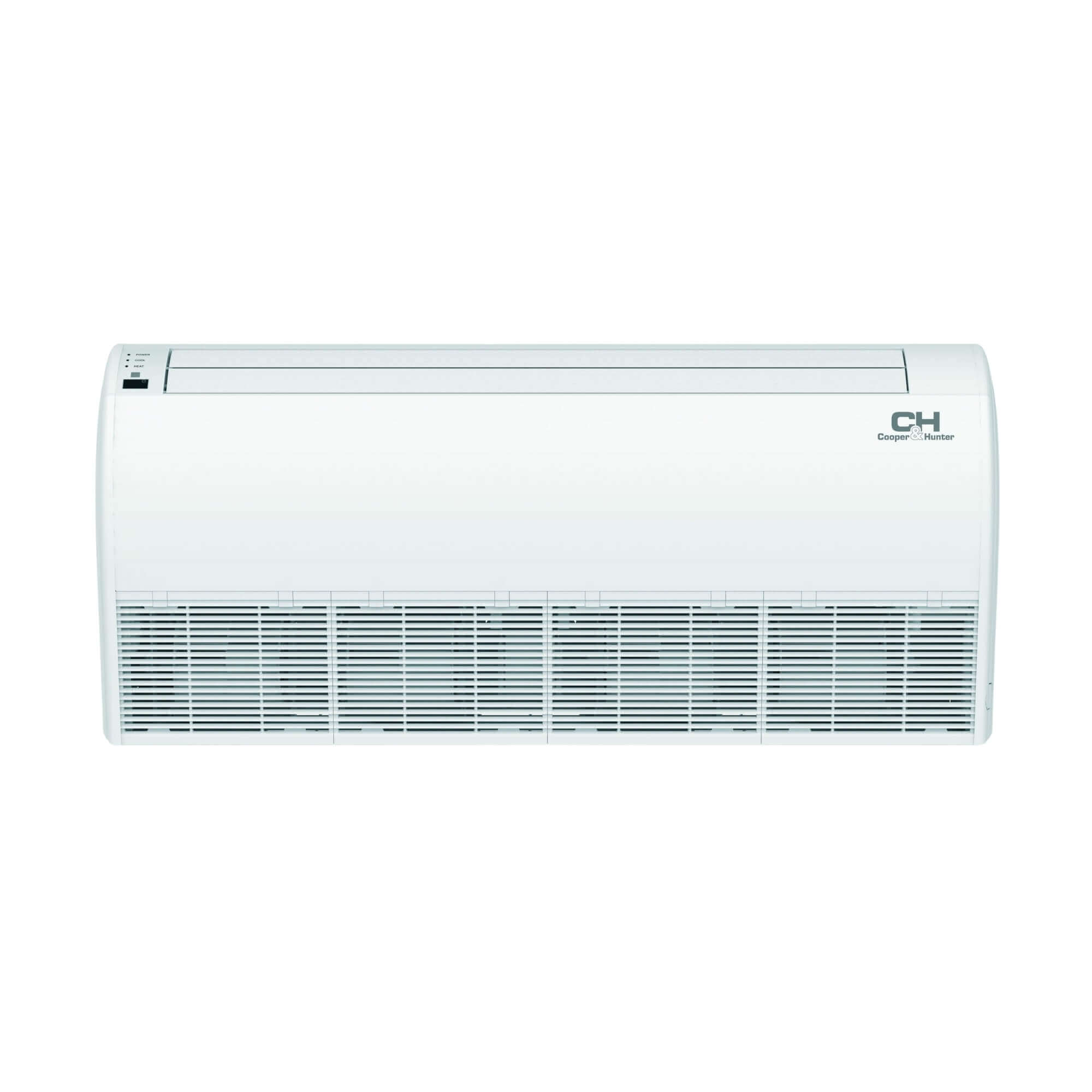

Technical parameters Cooper&Hunter CH-IDS085PRK:
| Cooling capacity, kW | 8.50 |
| Heating capacity, kW | 8.80 |
| Power supply | ~220-240V/50Hz/1 Ph |
| Power consumption, kW | 2.80/2.65 |
| Seasonal Energy Efficiency Ratio SEER (cooling) | 6.10 (A++) |
| Seasonal Coefficient of Performance SCOP (heating) | 4.00 (A+) |
| Airflow rate, m³/h | 1500 |
| Refrigerant | R32 |
| Refrigerant quantity, Kg | 1.80 |
| Weight (indoor unit / outdoor unit) | 31/60 |
| Cooling operation outdoor temperature range, ºC | -20/+48 |
| Heating operation outdoor temperature range, ºC | -20/+24 |
| Indoor unit dimensions, mm | 1200x235x665 |
| Outdoor unit dimensions, mm | 892x698x396 |
| Liquid pipe diameter (mm) | 9.53/3/8″ |
| Gas pipe diameter (mm) | 15.88/5/8″ |
| Maximum refrigerant piping length, m | 50 |
| Maximum refrigerant piping height, m | 25 |
| Communication cable, mm | 2 x 0.75 |
| Power supply cable, mm | 3 x2.5 |
| Maximum piping length without refrigerant charge | 5 |
| Additional refrigerant charge, g/m | 40 |
